Acitvating the ISAPI Redirect for Tomcat under IIS 7.5 (W2k8 R2) 64 Bit
1. Download the 64bit Isap_Redirect.dll from http://www.apache.org/dist/tomcat/tomcat-connectors/jk/binaries/
2. Copy the downloaded file to c:Program FilesApache Software FoundationTomcat 6.0binwin64 (or any other path)
3. Import the following registry file into the registry (change the path to the isapi_redirect.dll and to the tomcat folder).
Windows Registry Editor Version 5.00
[HKEY_LOCAL_MACHINESOFTWAREApache Software FoundationJakarta Isapi Redirector1.0]
@=""
"extension_uri"="/jakarta/isapi_redirect.dll"
"log_file"="C:\Program Files\Apache Software Foundation\Tomcat 6.0\logs\isapi_redirect.log"
"log_level"="error"
"worker_file"="C:\Program Files\Apache Software Foundation\Tomcat 6.0\conf\workers.properties.minimal"
"worker_mount_file"="C:\Program Files\Apache Software Foundation\Tomcat 6.0\conf\uriworkermap.properties"
4. Open IIS Manager => Server => ISAPI and CGI Restrictions
5. Select the isapi_redirect.dll, and choose a description – also activate “Allow extension path to execute”
6. Open the Website where you want to activate the redirect and open the option “ISAPI Filters”

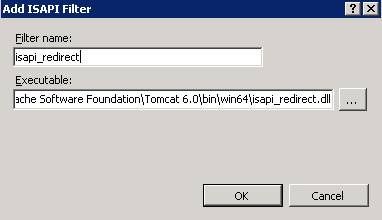

7. Add an ISAPI Filter with the following configuration:
Filter name: isapi_redirect (for example)
Executable: click on “…” and change to the isapi_redirect.dll folder and choose the “isapi_redirect.dll”
8. Add an “Virtual Directory” under your Website. Name it “jakarta” and choose as the path the path to the isapi_redirect.dll
9. Now open the “Handler Mappings” on the just created “Virtual Directory” and click on “Edit Feature Permissions”
10. Activate Execute
11. Create a file named „workers.properties.minimal” in the “conf” folder which you can find in the tomcat folder.
Insert the following lines into this file:
#
# The workers that jk should create and work with
#
worker.list=local
#
# Defining a worker named ajp13w and of type ajp13
# Note that the name and the type do not have to match.
#
worker.ajp13w.type=ajp13
worker.ajp13w.host=localhost
worker.ajp13w.port=8009
12. Create another file named „uriworkermap.properties” in the same directory.
Insert the following lines into this file (for a web-application named “testapp”, if your webapp is “called” “hansifransi” you must remove “testapp” and add “hansifransi”):
/testapp/*=local
13. Restart the Tomcat Service and the IIS Web-Server
14. Finished 🙂 Now you can open your Tomcat-Websites by addressing an “virtual” IIS Website.
