Citrix Receiver Single-Sign-On (Pass-through Authentication) does not work with StoreFront

30. September 2013

During the last weeks I did a lot of testing with Citrix XenDesktop 7. There was one thing which was quite hard to figure out why it wasn’t working:

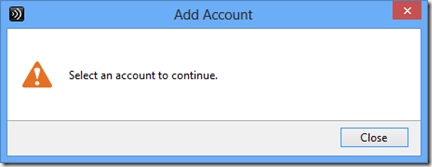

A connection from Citrix Receiver 4.X to StoreFront always failed while I was using the Domain-Credentials (or Domain-Pass-through). No Single-Sign-On (SSON) – even for the configuration of the store – was possible. I was only able to connect the Receiver to StoreFront using the Authentication-Methods “Username and Password” or “Smartcard”. If I tried to configure a Store I always received the message “Select an account to continue”.
2013-09-29 15_04_29-Muster-Client04 on W2012-LENOVO - Virtual Machine Connection
The problem with this message was that I didn’t receive a Dialog to choose a Store…
After a lot of testing’s I found the necessary steps so that SSON was working.

1. Open a command prompt and start the Receiver Installation with the argument /includeSSON
2013-09-29 14_59_45-Muster-Client04 on W2012-LENOVO - Virtual Machine Connection
Without this option the necessary SSON Components are not installed.

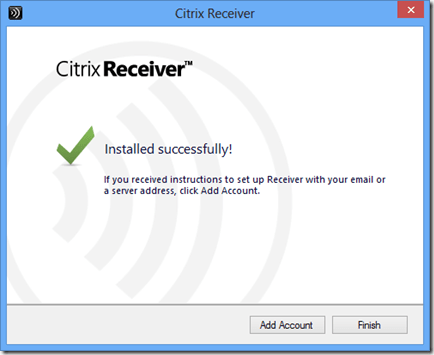

2. At the end of the installation don’t choose “Add Account” – SSON is not yet working.
2013-09-29 15_02_16-Muster-Client04 on W2012-LENOVO - Virtual Machine Connection

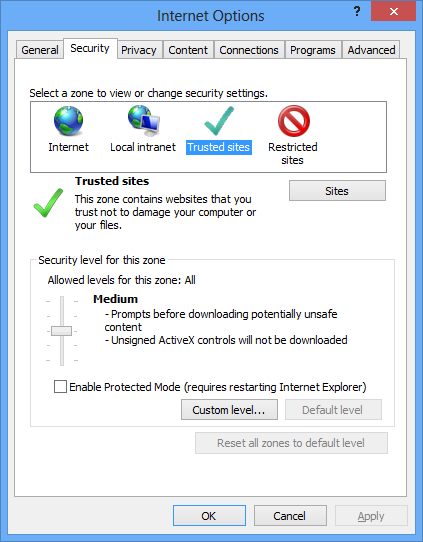

3. Open “Internet Options” in Internet Explorer an switch to Security.
2013-09-29 15_05_01-Muster-Client04 on W2012-LENOVO - Virtual Machine Connection

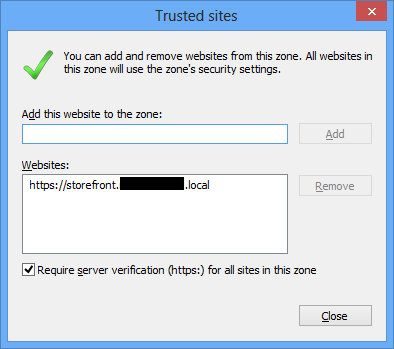

Choose “Trusted Sites”, “Sites” and add the StoreFront FQDN (beginning with https://)
2013-09-29 15_05_21-Muster-Client04 on W2012-LENOVO - Virtual Machine Connection

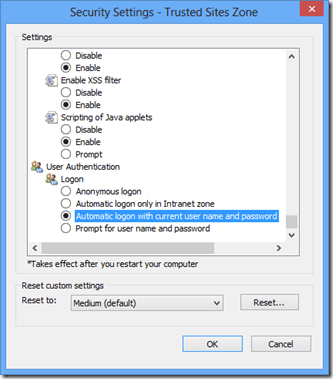

After adding the StoreFront-Address to the "Trusted Sites” open “Custom Level” to change the “Security Settings”. Scroll down to “Authentication” and activate“Automatic logon with current user name and password”,
2013-09-29 15_05_47-Muster-Client04 on W2012-LENOVO - Virtual Machine Connection

[EDIT]
Instead of adding the StoreFront-Adress to the Trusted Sites you can also add it to the “Local Intranet” Zone –than you don’t need to edit the Security Settings. Thanks to Neal Dolson (@ndolson816) for the tip.
[/EDIT]

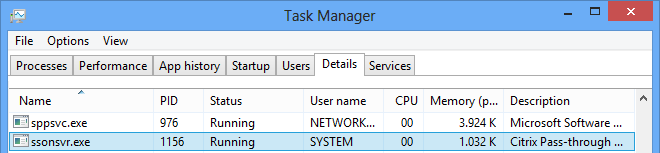

4. Now you have to logout and login again – otherwise the necessary ssonsvr process is not started. After login open the Task Manager and check if the ssonsvr.exe is running.
2013-09-29 15_03_04-Muster-Client04 on W2012-LENOVO - Virtual Machine Connection

5. That’s it – you can now configure your Store and connect to the store using Domain Pass-through,

If it’s still not working you can configure a Group Policy to activate SSON on your clients. Create a new Policy and add the adm file icaclient.adm. You can find the file on a client with an installed receiver in the folder “C:\Program Files\Citrix\ICA Client\Configuration” or “C:\Program Files (x86(\Citrix\ICA Client\Configuration” on 64Bit systems.

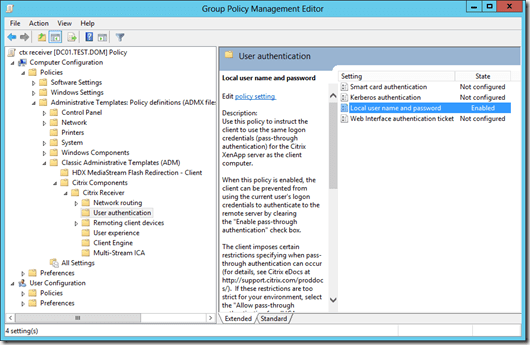

Navigate to “Computer Configuration, Policies, Classic Administrative Templates (ADM), Citrix Components, Citrix Receiver. User Authentication
2013-09-29 20_37_05-dc01 (24.1.1) on W2012-LENOVO - Virtual Machine Connection

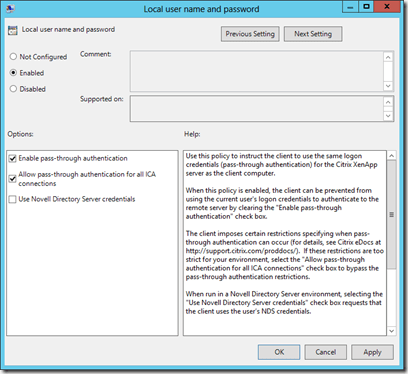

Enable “Local user name and password” with “Enable pass-through authentication” and “Allow pass-through authentication for all ICA connections” activated.
2013-09-29 20_39_37-dc01 (24.1.1) on W2012-LENOVO - Virtual Machine Connection

Link the group policy to your client OU and reboot your clients to apply it. That’s it.

SSONSVR is not starting

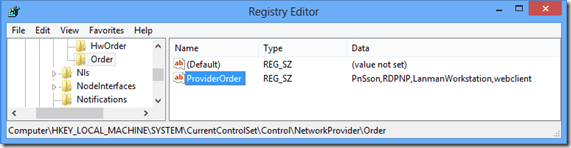

If the ssonsvr process is not starting you have to check the network provider order. Open the registry and navigate to
Computer\HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\NetworkProvider\Order
Edit “ProviderOrder” and make sure that “PnSson” is the first entry.
2013-09-29 15_03_49-Muster-Client04 on W2012-LENOVO - Virtual Machine Connection
Reboot your system – after login the process is started.

Published Desktop shows logon screen or connection is directly closed

Another problem that might happen is that a pass-through login to Citrix Receiver is working – but after starting a published desktop the logon screen appears or the connection is directly closed. Furthermore you may find the following error in the event-log:
Source: ICA Service
ID: 34
Description: ICA connection is cancelled because auto-logon is enforced and auto-logon failed.

To fix this you have to add another setting in the above created GPO. Open “…,Citrix Receiver, User Authentication” and enable “Kerberos authentication”.
richtlinie - kerberos
Wait until your clients applied the updated GPO (or do a “gpupdate /force”) – starting a published desktop now works without pass-through authentication.
